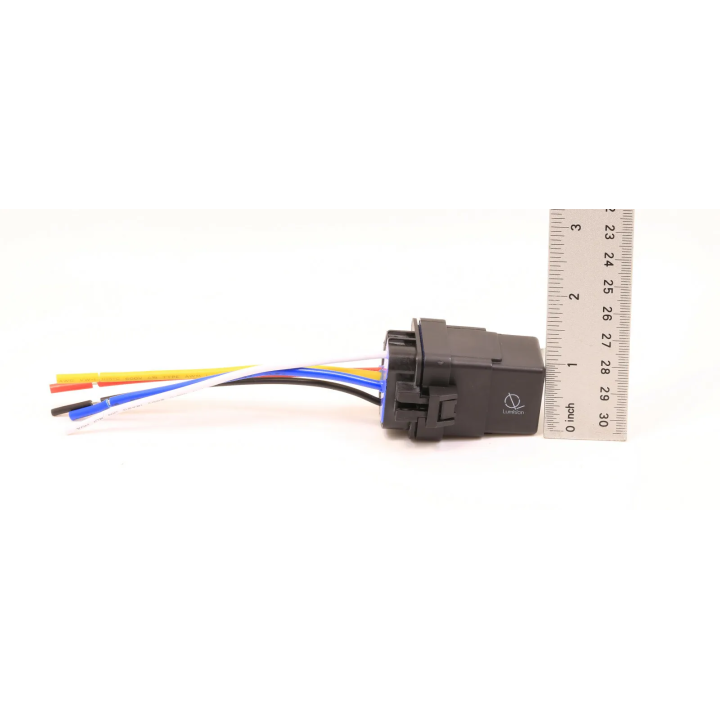

Lumision 30AMP 12V DC Water proof Relay and Harness 5-PIN SPDT Bosch Style 30A images
Lumision 30AMP 12V DC Water proof Relay and Harness 5-PIN SPDT Bosch Style 30A
Price:
$8.99
Nominal Coil Voltage: 12V DC
Coil Power: 1.8 Watts
Coil Resistance: 80 ohms
@12volts coil draw: 142mA
@14volts coil draw: 166mA
Item Information:
100% brand new, High Quality

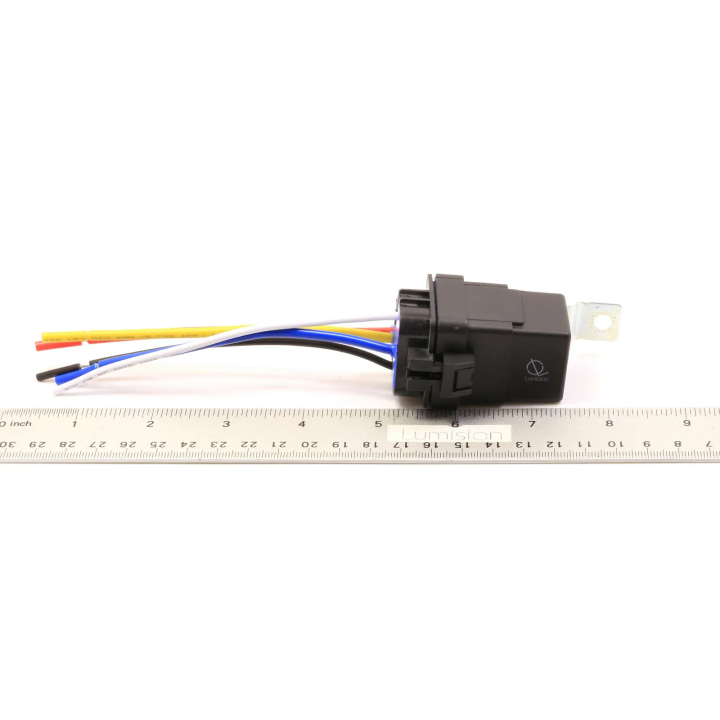

4.5in - 14 AWG tinned copper wires for Pin 30, Pin 87, Pin 87a.
4.5in - 18 AWG tinned copper wires for Pin 85, Pin 86.
12V DC waterproof relay (max 14 V). 30A High switching capability
Excellent waterproof performance, high quality in any weather conditions
Nominal Coil Voltage: 12V DC
Coil Power: 1.8 Watts
Coil Resistance: 80 ohms
@12volts coil draw: 142mA
@14volts coil draw: 166mA
Must Operate Voltage: 6~8V DC
Must Release Voltage: 0.6~3.6V DC
Maximum Applied Voltage: 15.6V DC
Package Content: 1 x 12 V DC waterproof relay and harness
4.5in - 14 AWG tinned copper wires for Pin 30, Pin 87, Pin 87a.
4.5in - 18 AWG tinned copper wires for Pin 85, Pin 86.
12V DC waterproof relay (max 14 V). 30A High switching capability
Excellent waterproof performance, high quality in any weather conditions
Nominal Coil Voltage: 12V DC
Coil Power: 1.8 Watts
Coil Resistance: 80 ohms
@12volts coil draw: 142mA
@14volts coil draw: 166mA
Must Operate Voltage: 6~8V DC
Must Release Voltage: 0.6~3.6V DC
Maximum Applied Voltage: 15.6V DC
Package Content: 1 x 12 V DC waterproof relay and harness
Item Feature:
- Life Expectancy Electrical: 100,000 Operations (at 30 Operations/minute)
- Life Expectancy Mechanical: 10,000,000 Operations
- Temperature Range: -30 ~ +80 degrees Celsius
- Vibration Resistance: 10~55Hz, 1.5mm
- Shock Resistance: Operations Extremes: 10g. Damage Limits: 100g
- Humidity: 40% ~ 85%
- Insulation Resistance: 100m ohm minimum at 500V DC
- Dielectric Strength Between Open Contacts: 500V AC (for one minute/sec)
- Between Contact and coil: 750AC (for one minute/sec)
- Trigger Time: 7ms
- Release Time: 5ms
-
Brand
-
In stock10 Items
-
MPNLUM-JD2912-30A
